Clearview Power Slide

Code: N/A

Top quality ClearView Accessory designed and tested in Australia.

Suits a wide range of vehicle makes and models and self build conversions.

Contains: 1x Clearview Power Slide

Description

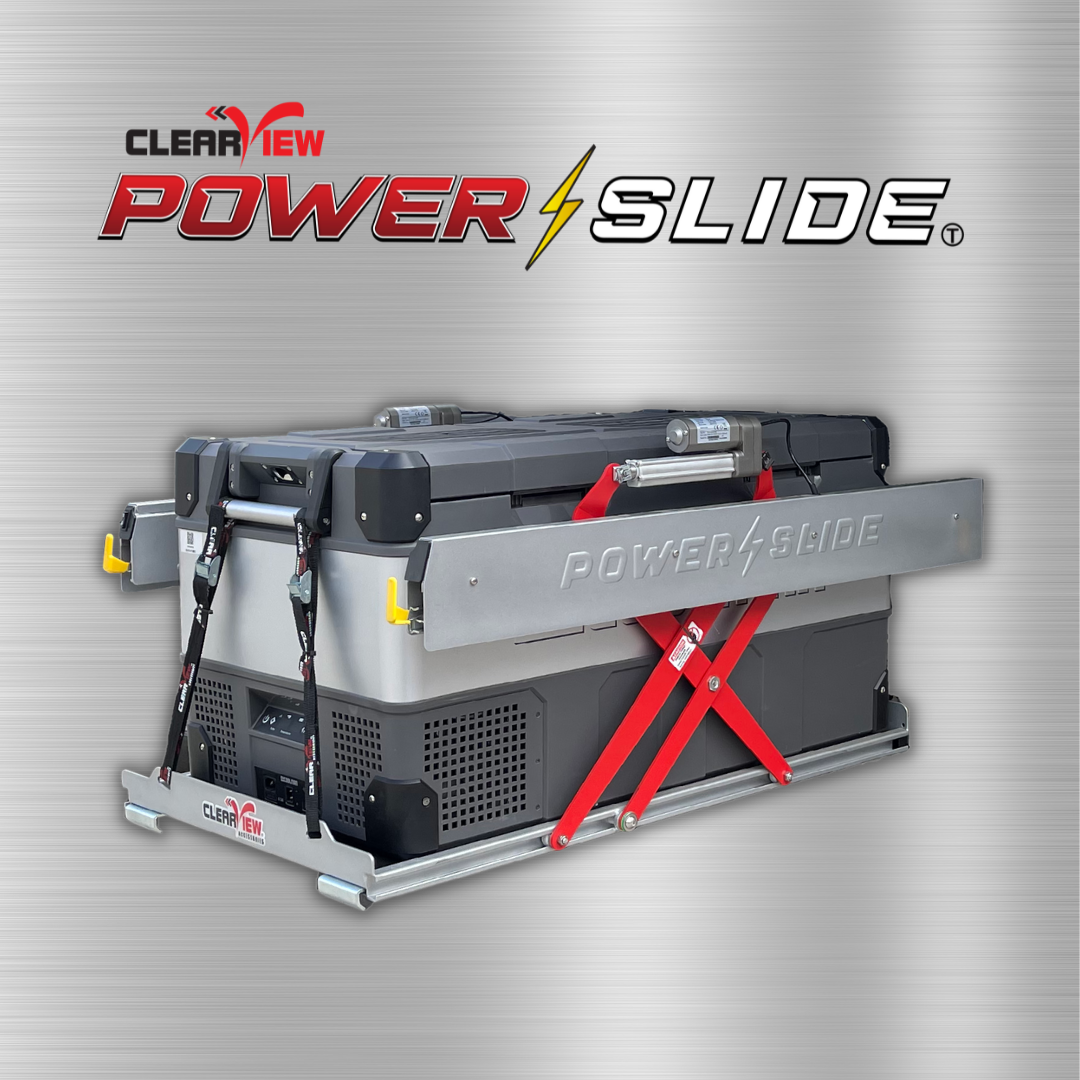

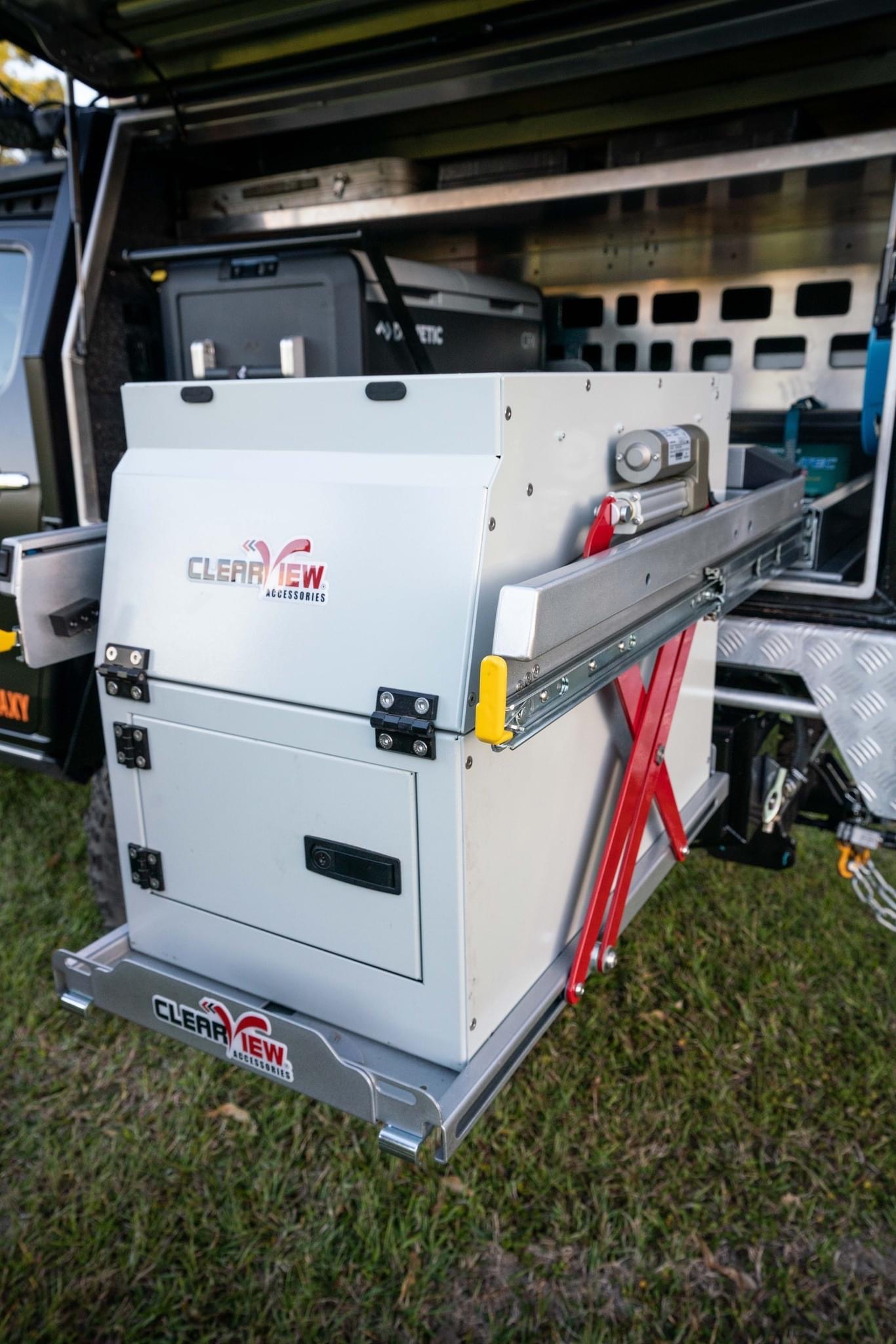

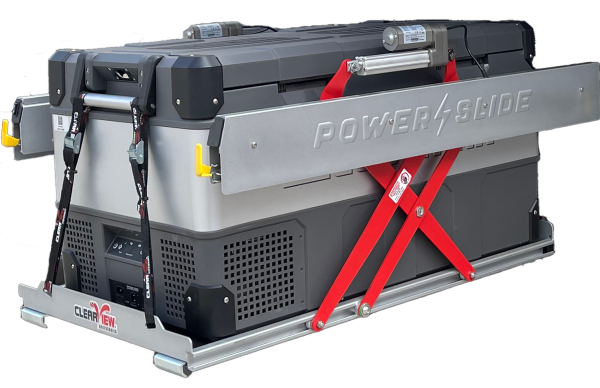

Clearview Power Slide

The World’s First patented aluminum Powered Fridge Slide. Developed, tested and perfected over 3 years. Clearview innovation.

Power Slide Product Features:

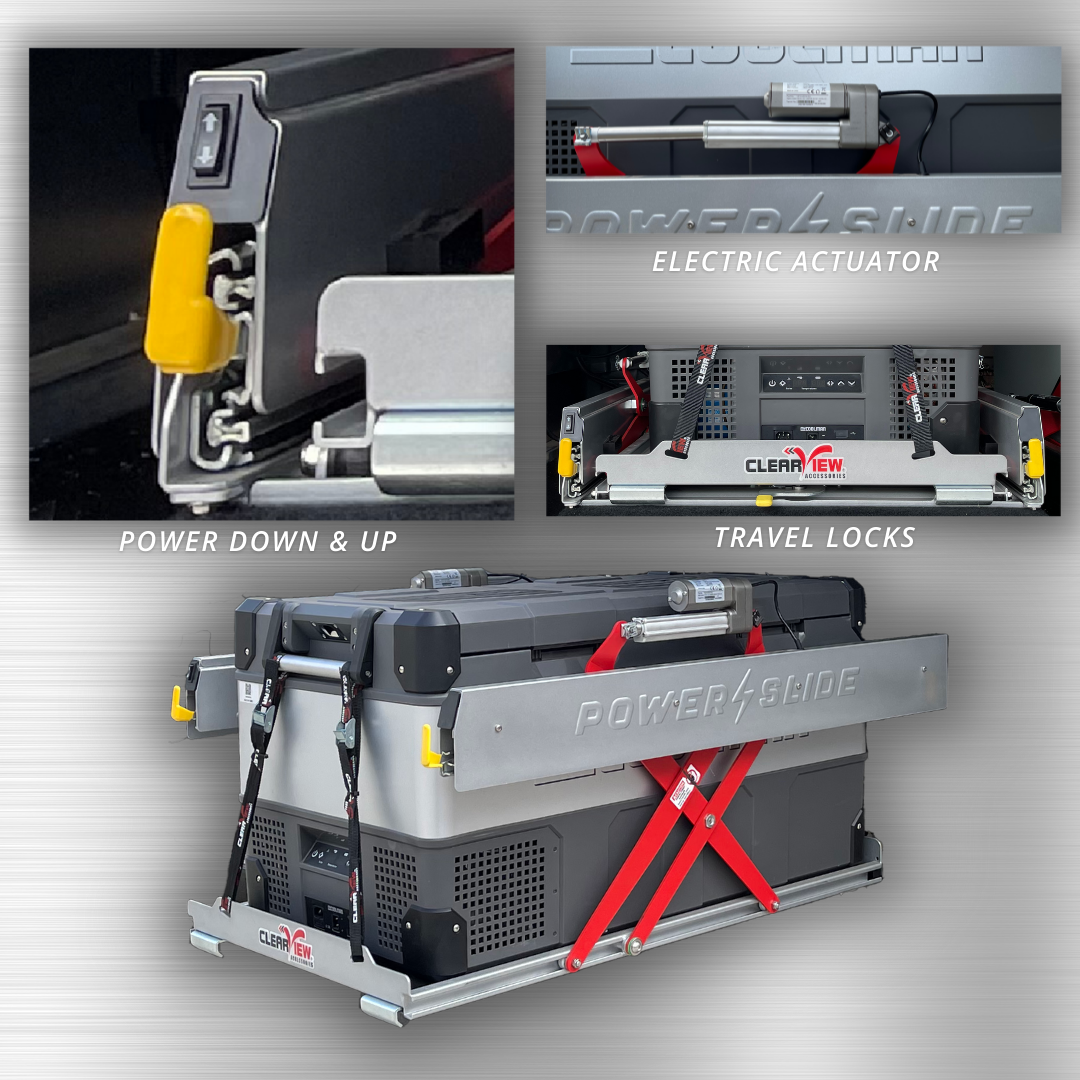

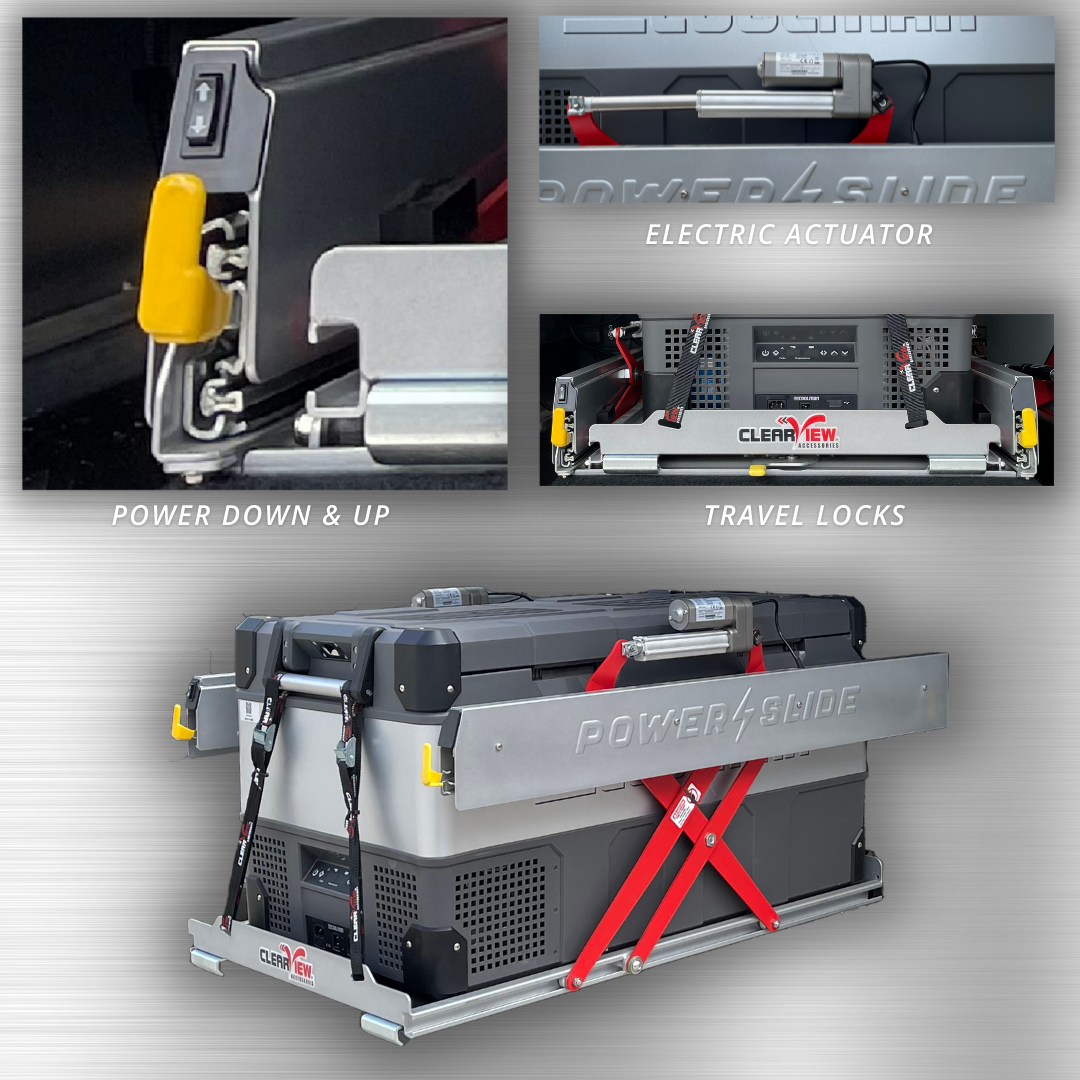

  • Gently lowers with the press of a button, allowing you to access your fridge
  • Fits most Large Fridges on the market
  • Easy Operation and Installation

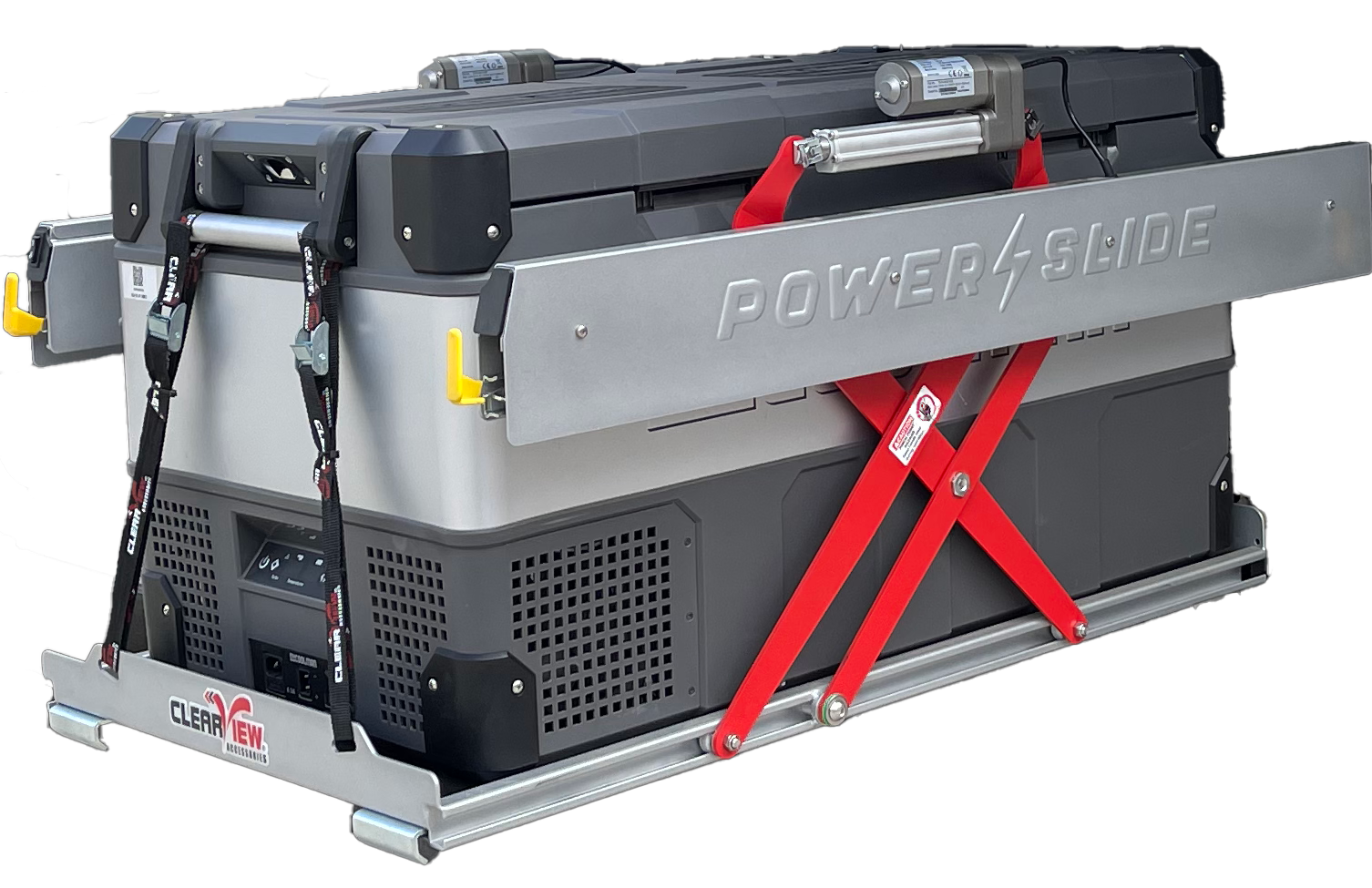

  • Tri Scissor Synchro-Lift Technology
  • Lightweight, aluminum extruded construction

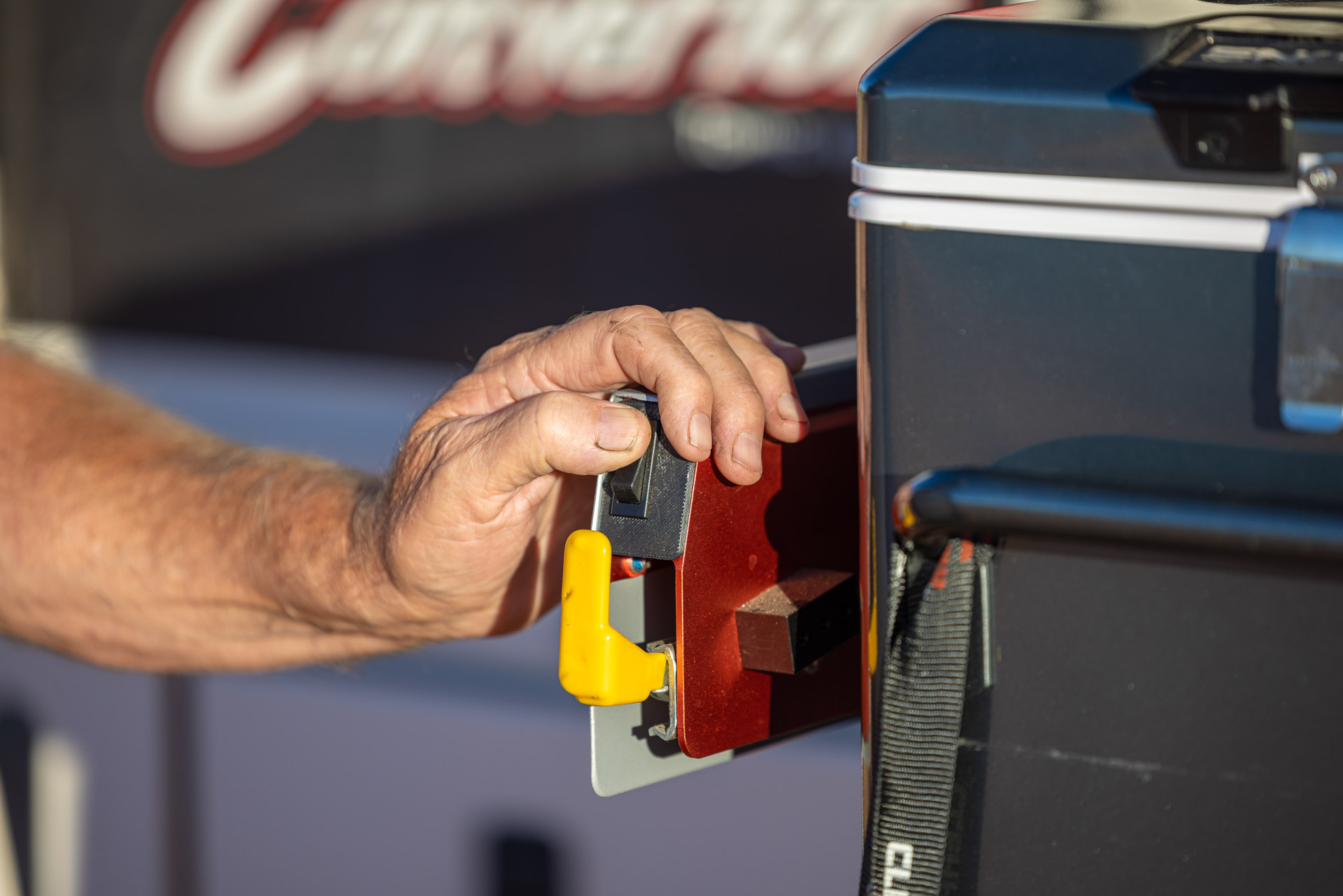

  • Heavy Duty Travel Locks
  • Designed to hold 180kgs
  • 140mm extended travel
  • Powder coated finish
  • Maximum drop of 290mm
  • Tested to outlast 10,000 movements
  • Available in 4 sizes: XL, L, M, S
  • Fridge Straps included (4)
  • Embossed Rubber Mat to support Fridge
  • 3 Year Warranty

Fridge Slide Application chart

PS-S (SMALL)

TRAY
738 (L) X 390 (W)

BASE
813 (L) X 544 (W)

TRAVEL
853MM

WEIGHT
29KG

LOAD RATING
180KG

PS-M (MEDIUM)

TRAY772 (L) X 460 (W)BASE 838 (L) X 614 (W)TRAVEL978MM

WEIGHT
30.5KG

LOAD RATING
180KG

PS-L (LARGE)

TRAY
885 (L) X 530 (W)

BASE
965 (L) X 684 (W)

TRAVEL
1105MM

WEIGHT
35KG

LOAD RATING
180KG

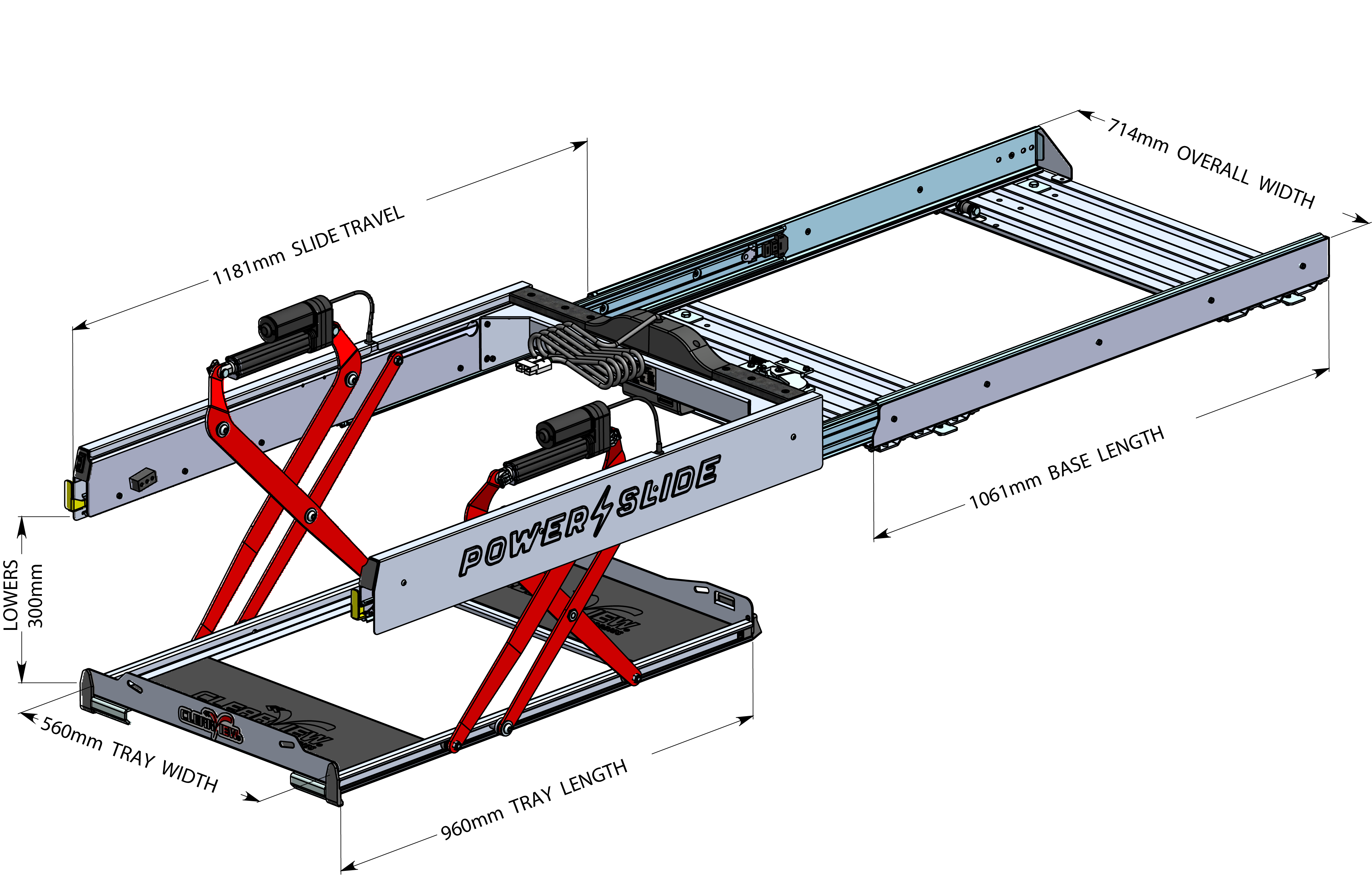

PS-XL (EXTRA LARGE)

TRAY
960 (L) X 560 (W)

BASE
1041 (L) X 714 (W)

TRAVEL
1181MM

WEIGHT
38KG

LOAD RATING
180KG
